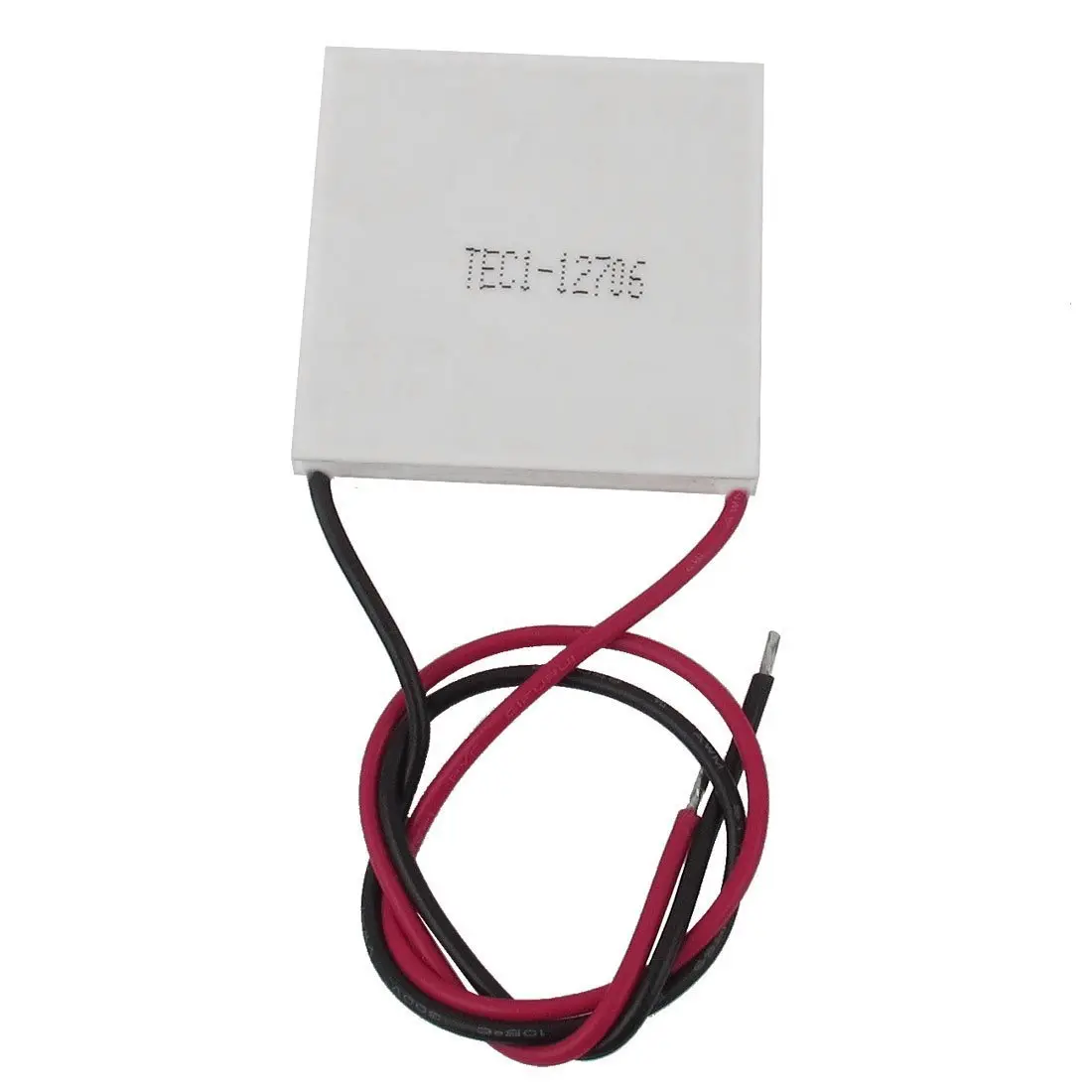

TEC1-12706 Thermoelectric Cooler

The TEC1-12706 Thermoelectric Cooler is a solid-state Peltier module used for heating and cooling applications based on the thermoelectric effect. It operates by transferring heat from one side of the module to the other when a DC voltage is applied, making one side cold and the other side hot. This module is widely used in cooling systems, DIY refrigerators, CPU cooling experiments, and temperature control projects.

Features

• Solid-state cooling and heating with no moving parts
• Compact and lightweight design
• Works on direct current (DC) power supply
• Can both cool and heat depending on polarity
• Fast temperature response
• Quiet operation with no vibration
• Easy integration into DIY and embedded systems
• Suitable for experimental and industrial thermal applications

Specifications

• Model: TEC1-12706
• Type: Thermoelectric Peltier Cooler
• Operating Voltage: 12V DC (recommended)
• Maximum Current: Up to 6A
• Power Rating: Approximately 60W
• Dimensions: 40mm × 40mm × 3.6mm
• Temperature Difference (ΔT max): Up to ~60°C (under ideal conditions)
• Hot Side Temperature Range: Depends on heat dissipation system
• Material: Semiconductor thermoelectric elements with ceramic plates
• Polarity: Reversible for heating/cooling direction
• Operating Environment: Requires proper heatsink and cooling fan
