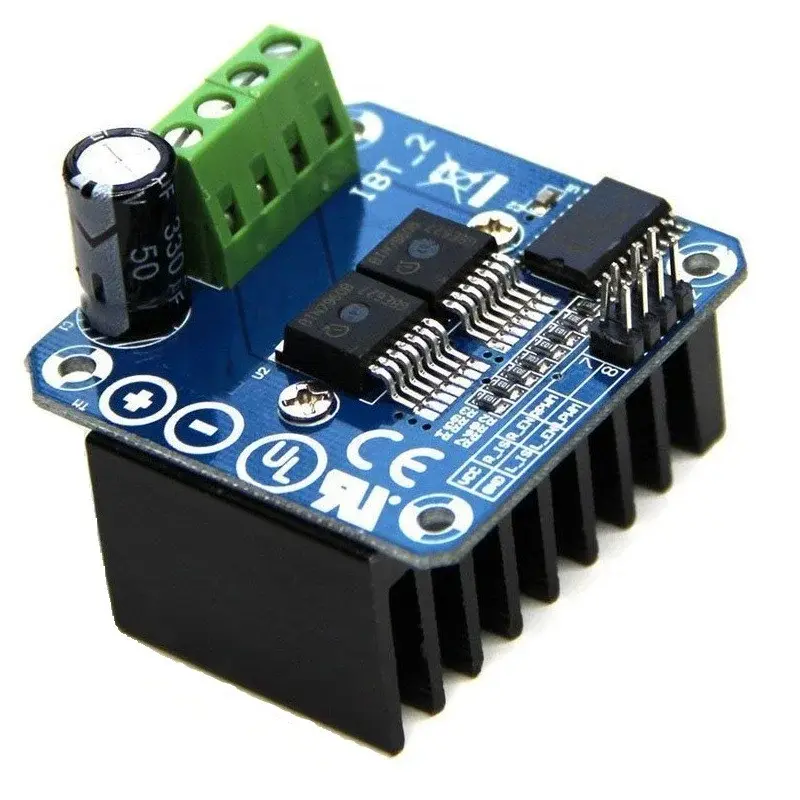

BTS7960 Dual H-Bridge Motor Driver

The BTS7960 Double H-Bridge Motor Driver is a high-power motor driver module designed for controlling large DC motors with high current requirements. It is based on the BTS7960 H-bridge IC and is commonly used in robotics, electric vehicles, and industrial automation projects. The module provides bidirectional motor control along with speed control using PWM signals, making it suitable for heavy-duty applications.

Features:

• High Current Handling: Supports large DC motors with high power requirements
• Dual H-Bridge Design: Enables forward and reverse motor rotation
• PWM Speed Control: Allows precise motor speed regulation
• Overcurrent Protection: Built-in protection against excessive current
• Overtemperature Protection: Prevents overheating during operation
• Wide Voltage Range: Compatible with various motor power supplies
• High Efficiency: Low heat generation compared to traditional drivers
• Optical Isolation (on some modules): Improves signal stability and protection
• Easy Interface: Compatible with Arduino, ESP32, Raspberry Pi, and other controllers

Specifications:

• Driver IC: BTS7960
• Motor Supply Voltage: Typically 5.5V – 27V DC
• Logic Voltage: 5V
• Output Current: Up to ~43A peak (continuous current depends on cooling and setup)
• Control Signals: PWM, direction inputs (R_EN, L_EN, RPWM, LPWM)
• Channels: 1 channel (one motor, bidirectional)
• Protection: Overcurrent and overtemperature protection
• Cooling: Requires heatsink and proper ventilation
• Dimensions: Standard BTS7960 module size
