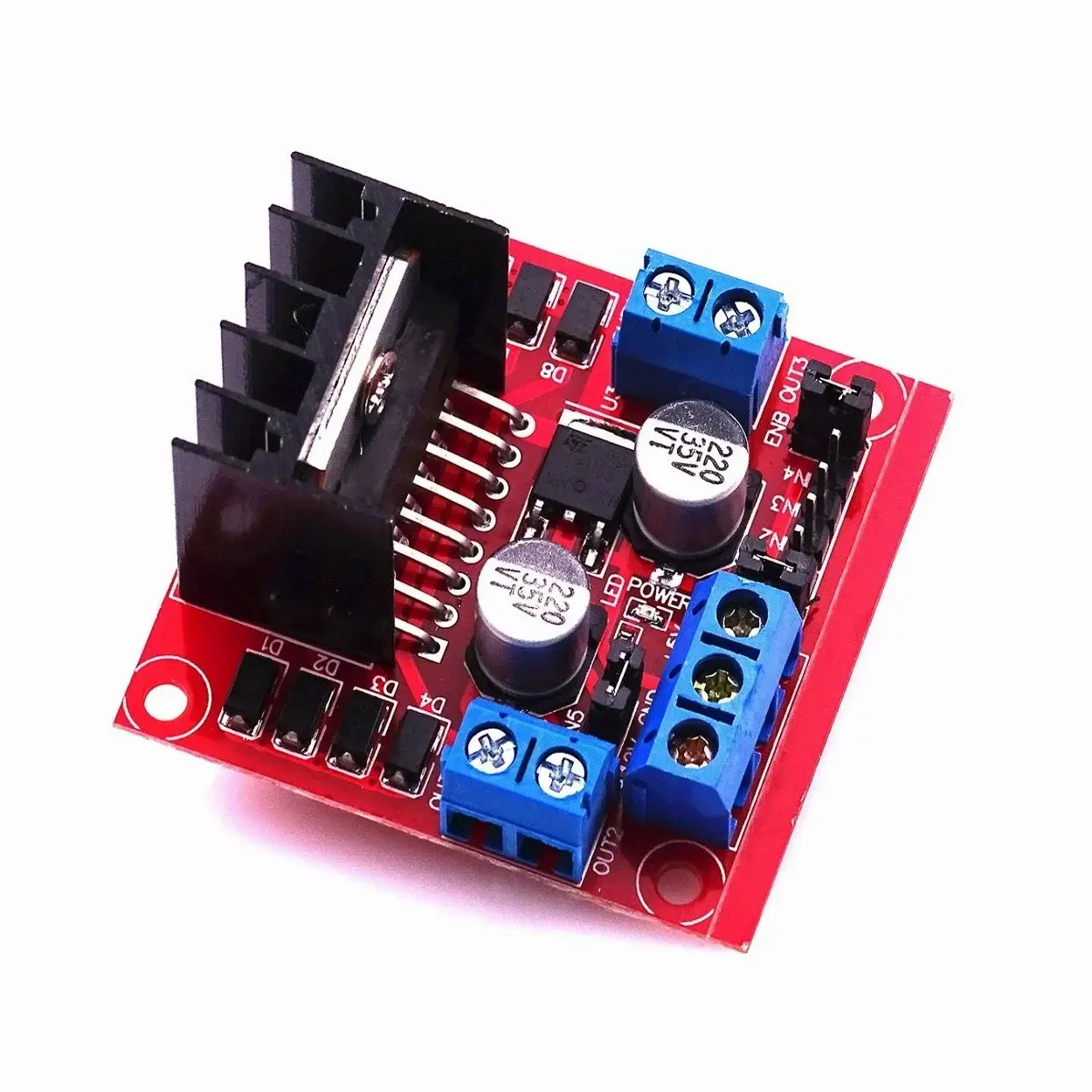

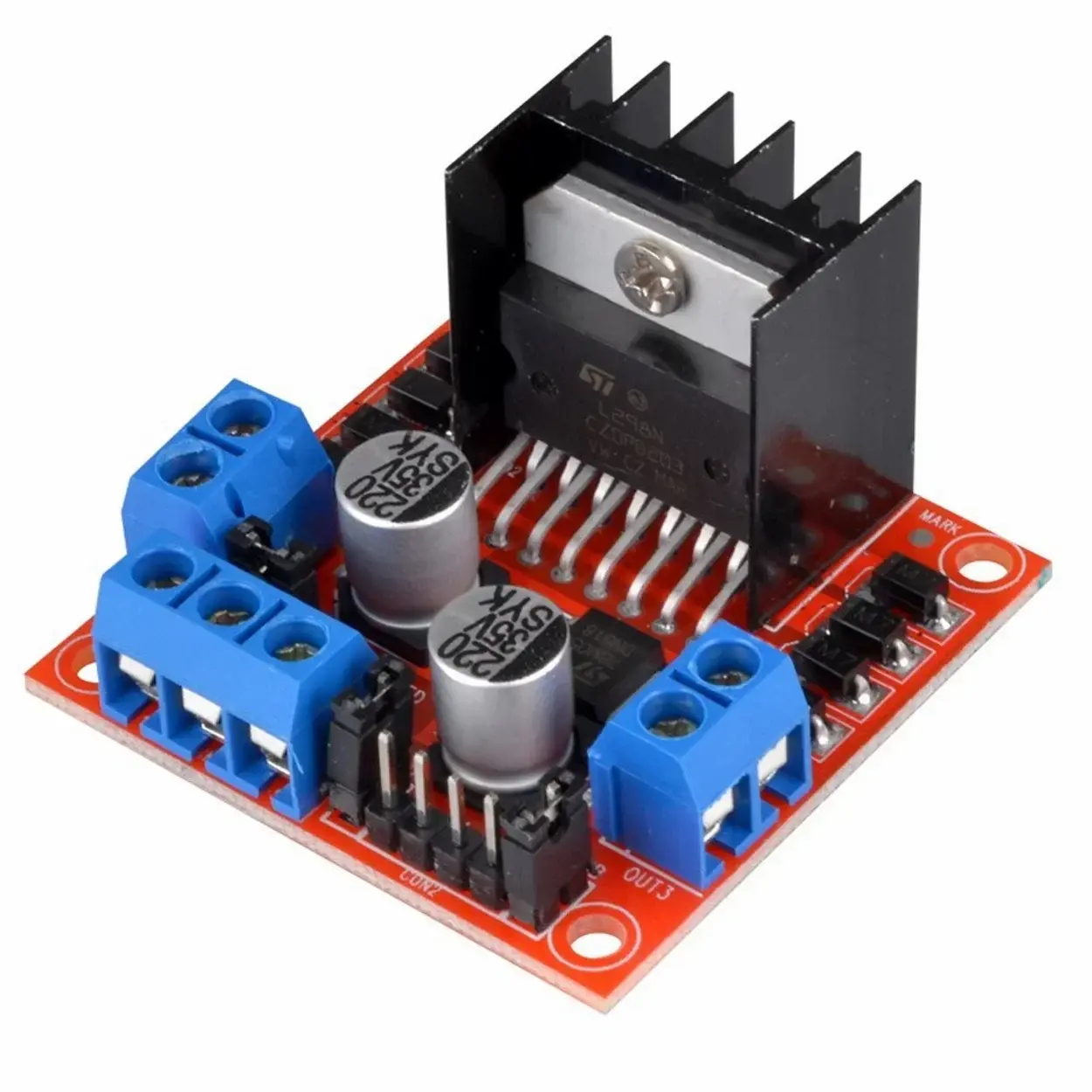

L298N Motor Driver Module Dual H-Bridge 3A

The L298N Motor Driver Module is a widely used dual H-bridge motor driver designed to control DC motors and stepper motors with ease. It allows bidirectional control and speed regulation using PWM signals, making it ideal for robotics, automation, and Arduino-based projects. With its ability to handle higher voltages and currents, it is perfect for driving motors in various DIY and industrial applications.

Features:

• Dual H-Bridge Driver: Controls two DC motors or one stepper motor
• High Current Support: Up to 3A peak current (with proper cooling)
• Bidirectional Control: Forward and reverse motor rotation
• Speed Control: PWM support for precise speed adjustment
• Wide Voltage Range: Supports a variety of motor power supplies
• Built-in Voltage Regulator: Provides 5V output for logic circuits
• Heat Sink Included: Improves heat dissipation during operation
• Easy Interface: Compatible with Arduino, ESP32, and other microcontrollers
• Screw Terminals: Secure and easy motor and power connections

Specifications:

• Driver IC: L298N Dual H-Bridge
• Motor Supply Voltage: 5V – 35V
• Logic Voltage: 5V
• Output Current: Up to 2A continuous per channel (3A peak)
• Control Interface: Digital I/O pins with PWM support
• Number of Channels: 2 (can drive 2 DC motors)
• Onboard Regulator: 5V (enabled via jumper)
• Cooling: Heatsink included
• Dimensions: Standard L298N module size
