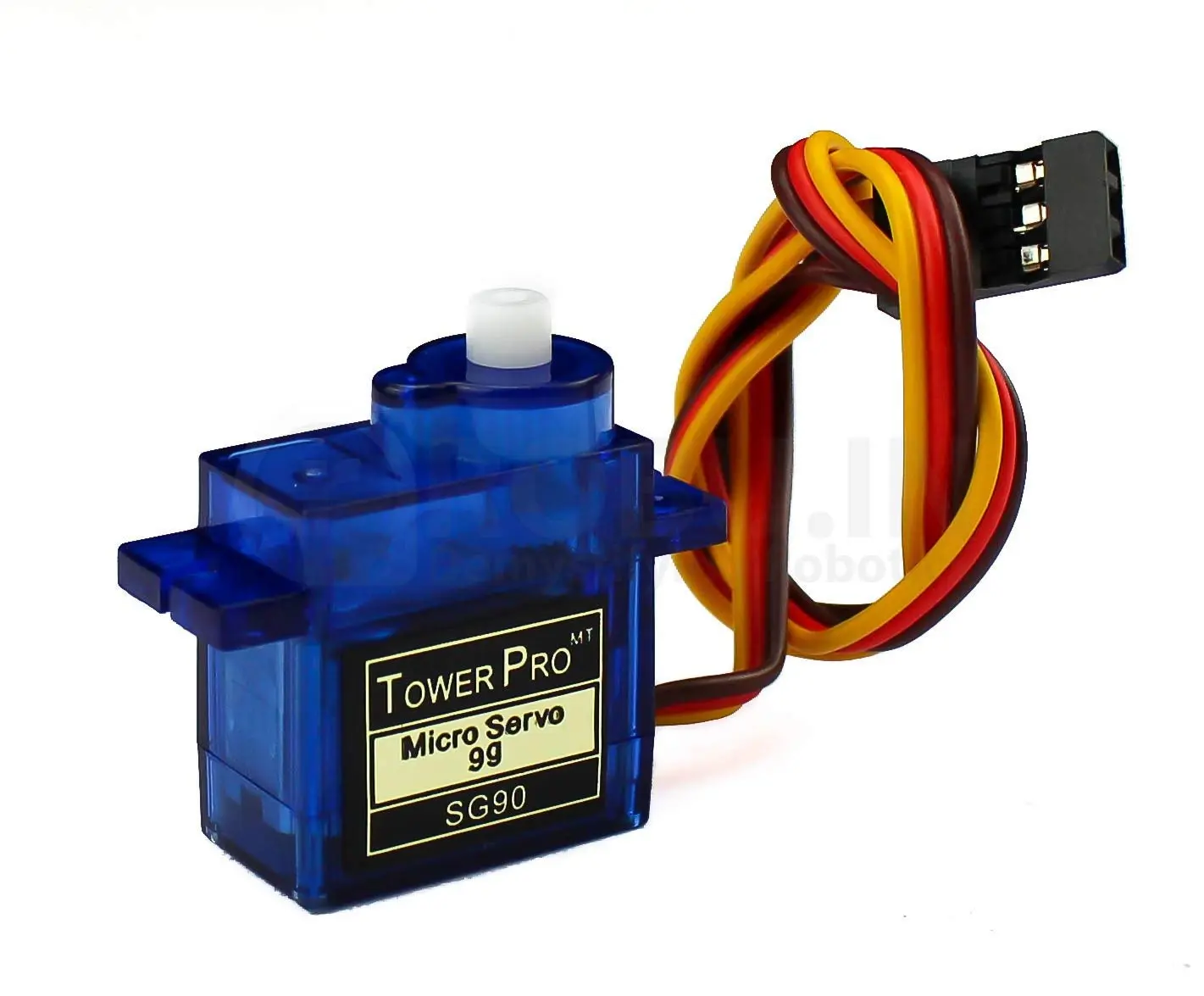

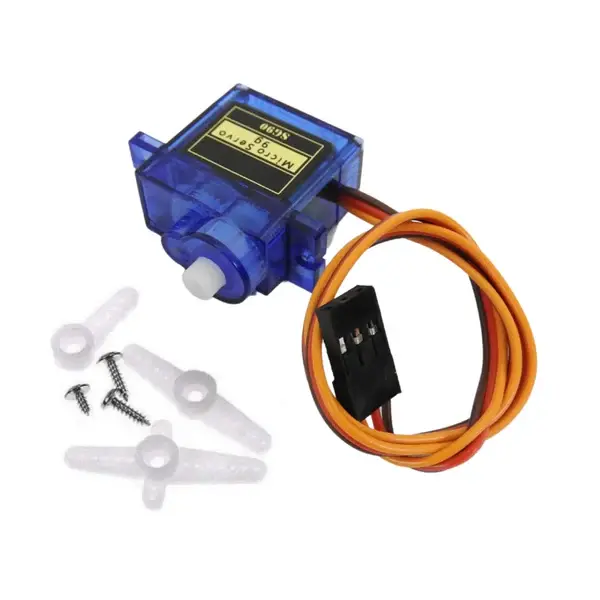

SG90 9g Micro Servo Motor

The SG90 9g Micro Servo Motor is a lightweight and affordable servo motor designed for precise position control in small robotics and electronics projects. With a rotation range of up to 180 degrees, it is widely used in Arduino, ESP32, and Raspberry Pi projects for controlling movement in robotic arms, RC vehicles, and automation systems. Its compact size and ease of use make it ideal for beginners and professionals alike.

Features:

• 180° Rotation: Precise position control within 0–180 degrees
• Lightweight Design: Only 9g, perfect for small projects
• High Precision: Accurate angle control using PWM signals
• Easy Interface: Compatible with Arduino, ESP32, and other microcontrollers
• Durable Plastic Gears: Reliable performance for general use
• Fast Response: Quick movement and positioning
• Low Power Consumption: Suitable for battery-powered applications
• 3-Wire Control: Simple connection (VCC, GND, Signal)

Specifications:

• Model: SG90 Micro Servo
• Operating Voltage: 4.8V – 6V
• Torque: Approximately 1.8 kg/cm at 4.8V
• Rotation Angle: 0° – 180°
• Speed: ~0.1 sec/60° at 4.8V
• Control Signal: PWM (Pulse Width Modulation)
• Gear Type: Plastic gears
• Cable Length: Approximately 20–25 cm
• Weight: 9g
• Dimensions: Approximately 22.8 × 12.2 × 28.5 mm
