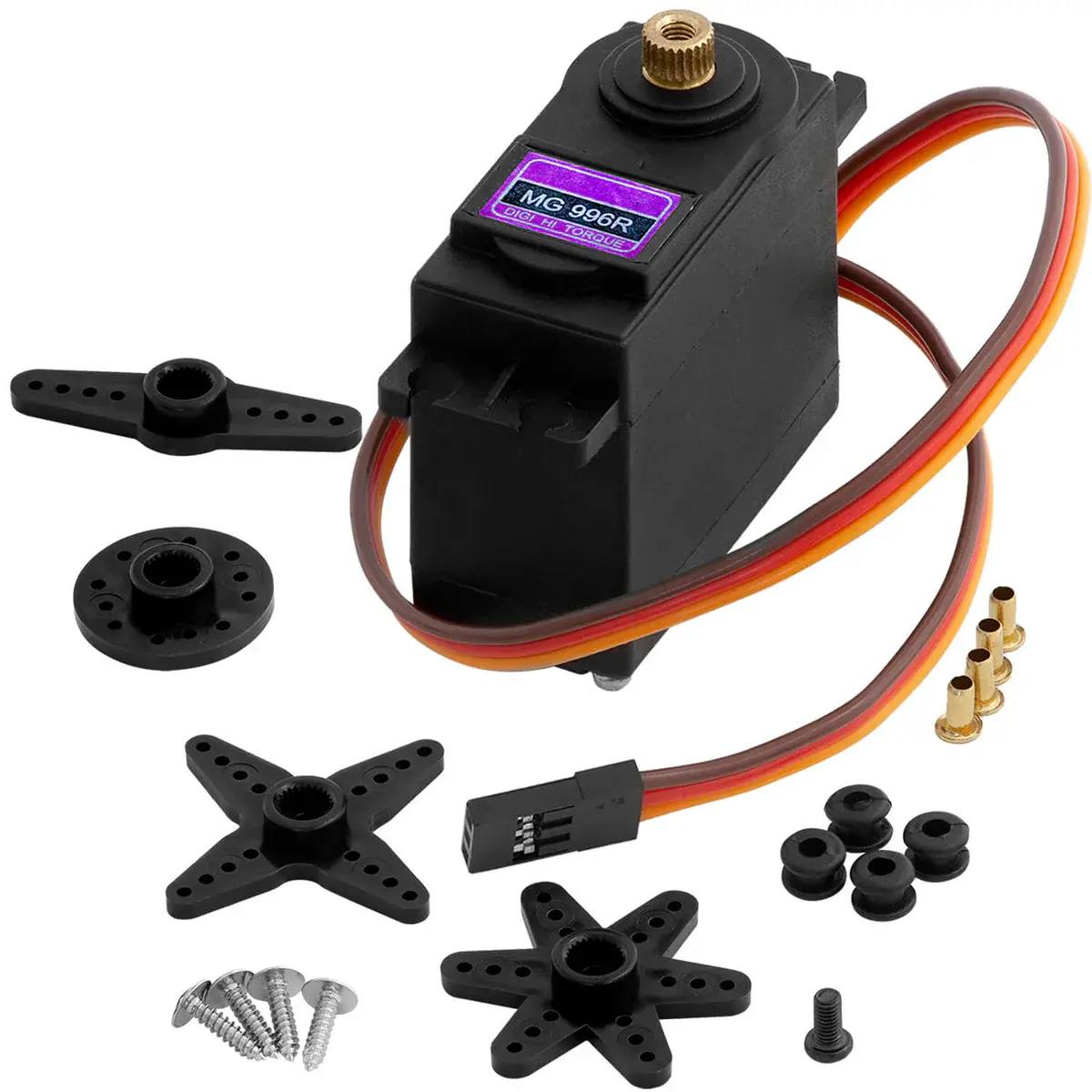

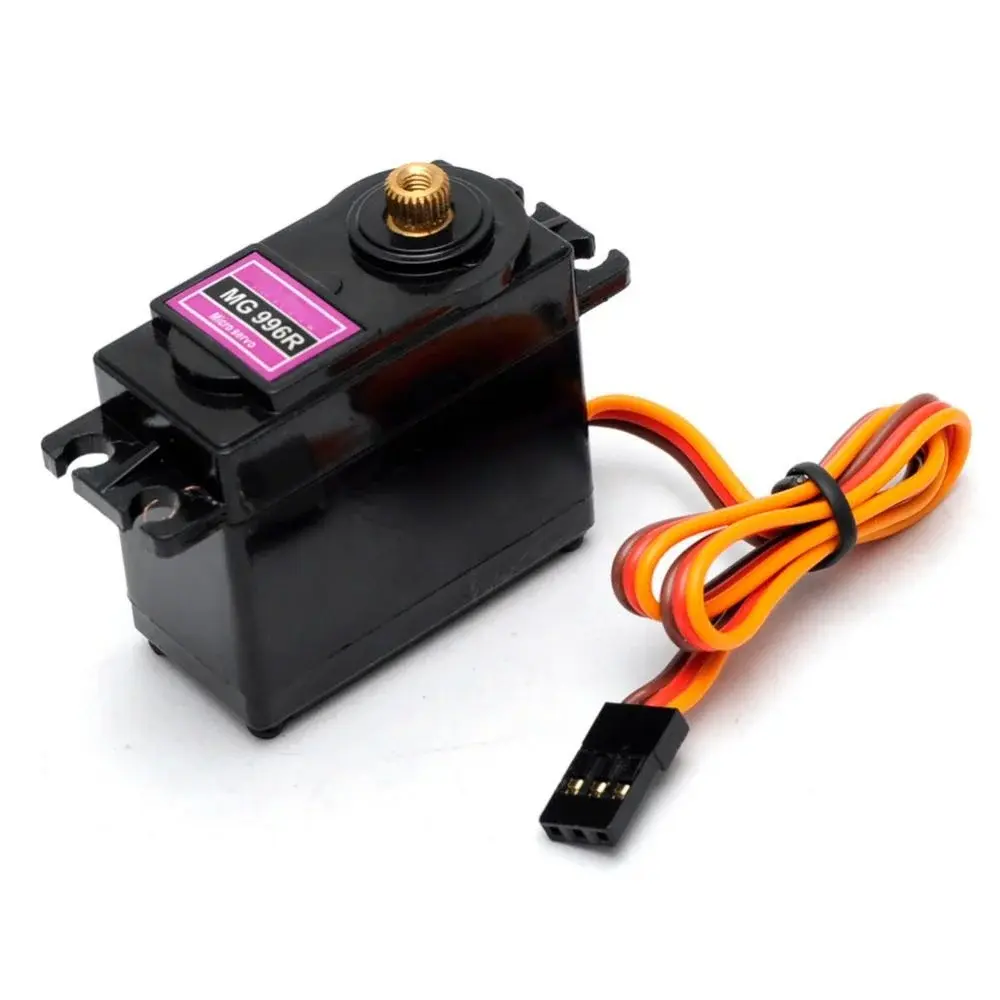

MG996R Metal Gear Servo Motor (180 Degree)

The MG996R Metal Gear Servo Motor is a powerful and durable servo designed for high-load applications requiring precise position control. With strong metal gears and high torque output, it is widely used in robotics, RC vehicles, robotic arms, and automation systems. It supports up to 180° rotation and is fully compatible with Arduino, ESP32, and other microcontrollers using PWM control.

Features:

• High Torque Output: Delivers up to 10–11 kg/cm torque for heavy-duty applications
• 180° Rotation: Precise angular control for position-based movement
• Metal Gear Construction: Durable and long-lasting compared to plastic gear servos
• High Accuracy: Improved control system for better centering and stability
• PWM Control: Easy interface with microcontrollers
• Strong Build Quality: Suitable for robotics and industrial projects
• Fast Response: Smooth and relatively quick movement
• 3-Wire Interface: Simple connection (VCC, GND, Signal)

Specifications:

• Model: MG996R
• Operating Voltage: 4.8V – 6.6V DC
• Torque: ~9.4 kg/cm (4.8V), up to 11 kg/cm (6V)
• Speed: ~0.17 sec/60°
• Rotation Angle: 0° – 180° (can be modified for continuous rotation)
• Control Signal: PWM (50Hz, 1–2 ms pulse)
• Gear Type: Metal gears
• Current: Up to ~2.5A under load
• Weight: ~55g
• Dimensions: Approx. 40.7 × 19.7 × 42.9 mm
