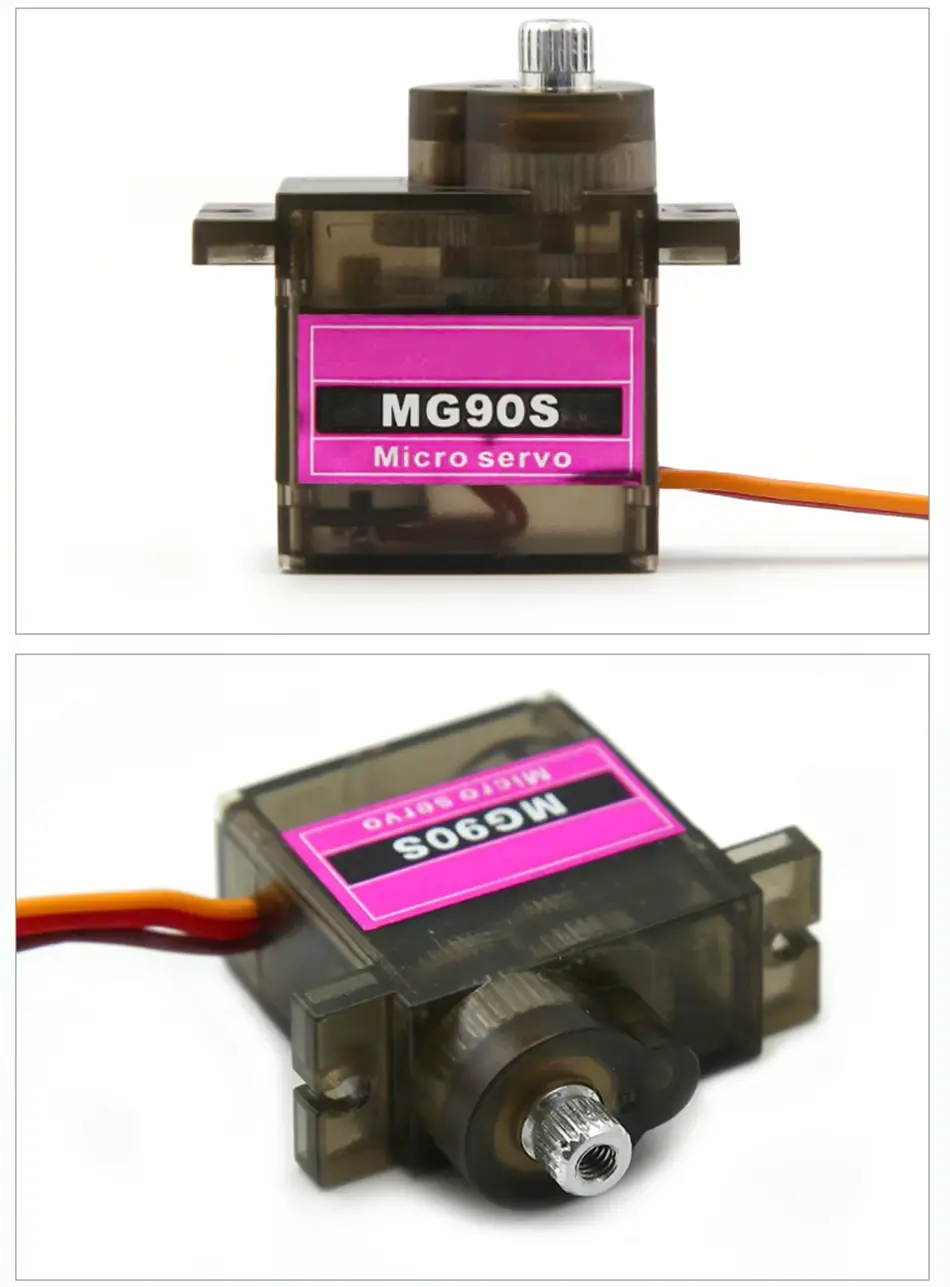

MG90S Metal Gear Servo Motor (180 Degree)

The MG90S Metal Gear Servo Motor is a compact and durable micro servo designed for precise motion control in robotics and automation projects. Featuring strong metal gears, it offers improved strength and longer lifespan compared to plastic gear servos like SG90. With up to 180-degree rotation and higher torque, it is ideal for applications requiring reliability and better load handling.

Features:

• 180° Rotation: Accurate position control within 0–180 degrees
• Metal Gears: Enhanced durability and resistance to wear
• High Torque: Greater load handling compared to standard micro servos
• Compact Size: Small form factor suitable for tight spaces
• Fast Response: Smooth and quick movement
• 3-Wire Interface: Easy connection (VCC, GND, Signal)
• Wide Compatibility: Works with Arduino, ESP32, Raspberry Pi, and other controllers
• Stable Performance: Reliable operation for continuous use

Specifications:

• Model: MG90S
• Operating Voltage: 4.8V – 6V
• Torque: Approximately 2.0 – 2.2 kg/cm at 4.8V
• Rotation Angle: 0° – 180°
• Speed: ~0.1 sec/60°
• Control Signal: PWM (Pulse Width Modulation)
• Gear Type: Metal gears
• Cable Length: Approximately 20–25 cm
• Weight: ~13g
• Dimensions: Approximately 22.8 × 12.2 × 28.5 mm
