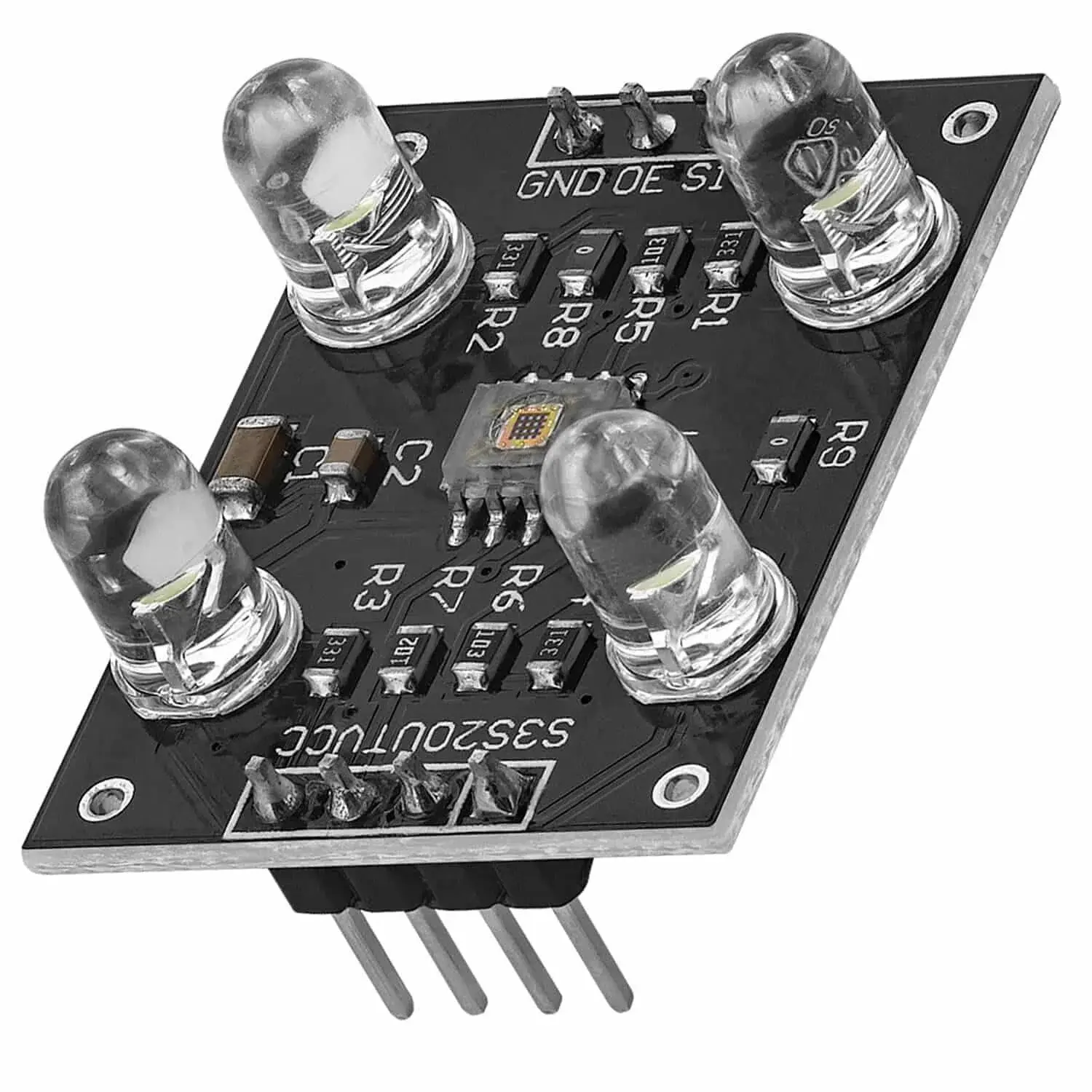

TCS3200 RGB Color Sensor Module

The TCS3200 RGB Color Sensor Module is a highly reliable color detection sensor used to identify and measure color intensity in various objects and surfaces. It works by converting light intensity (Red, Green, and Blue components) into frequency signals, making it easy to interface with microcontrollers such as Arduino, ESP8266, ESP32, and Raspberry Pi. This module is widely used in color sorting systems, robotics, and industrial automation projects.

Features

• Detects Red, Green, Blue (RGB) color components
• Converts light intensity into frequency output
• High accuracy color recognition capability
• Adjustable scaling of output frequency
• Built-in white LED illumination for consistent readings
• Easy interface with digital microcontrollers
• Stable performance under different lighting conditions
• Suitable for real-time color detection applications

Specifications

• Model: TCS3200 / TCS230 compatible module
• Operating Voltage: 3V – 5V DC
• Output Type: Frequency signal (digital)
• Sensor Type: Photodiode array with color filters
• Detection Colors: Red, Green, Blue, Clear (white light)
• Output Frequency Range: Variable (depending on light intensity)
• Control Pins: S0, S1, S2, S3, OUT, OE
• Built-in Illumination: White LEDs
• Operating Temperature: -25°C to +70°C
• Compatibility: Arduino, ESP8266, ESP32, Raspberry Pi
