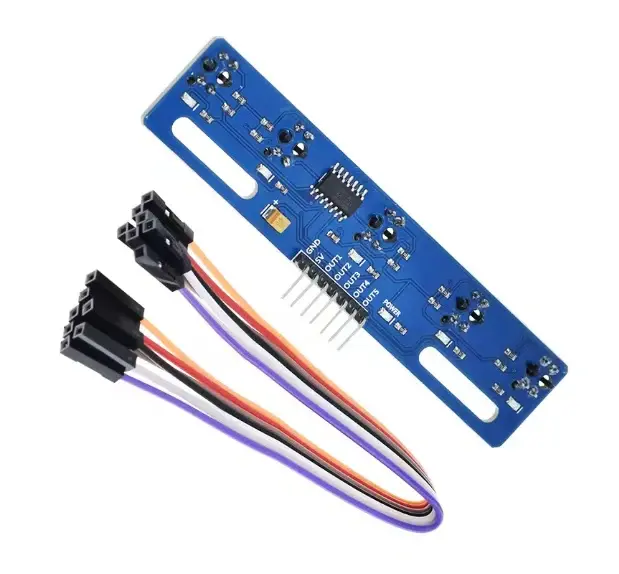

TCRT5000L 5 Channel Tracking Sensor Tracking Module Infrared Sensor

The TCRT5000L 5 Channel Tracking Sensor Module is a high-precision infrared sensor array designed for line-following robots and path detection systems. It uses five TCRT5000 reflective IR sensors to detect surface differences such as black lines on white backgrounds, enabling accurate navigation in robotics and automation projects.

Features:

• 5-Channel Sensor Array: Equipped with five IR sensors for accurate line tracking
• Reflective IR Technology: Detects surface color differences using infrared reflection
• High Sensitivity: Reliable detection of black and white surfaces
• Digital Outputs: Provides 5 separate HIGH/LOW signals for each sensor
• Adjustable Sensitivity: Individual potentiometers for tuning detection range
• LED Indicators: Each sensor has a status LED for detection feedback
• Fast Response: Real-time tracking for smooth robot movement
• Easy Interface: Compatible with Arduino, ESP32, and other controllers
• Mounting Holes: Easy installation on robot chassis

Specifications:

• Sensor Type: TCRT5000 IR Reflective Sensors (×5)
• Operating Voltage: 3.3V – 5V DC
• Detection Distance: ~0.5mm – 40mm (adjustable)
• Output Type: Digital (5 independent channels)
• Pins: VCC, GND, OUT1–OUT5
• Detection Principle: Infrared reflection (white = HIGH, black = LOW)
• Dimensions: Approx. 96 × 20 mm
• Sensor Spacing: ~15–22mm between sensors
