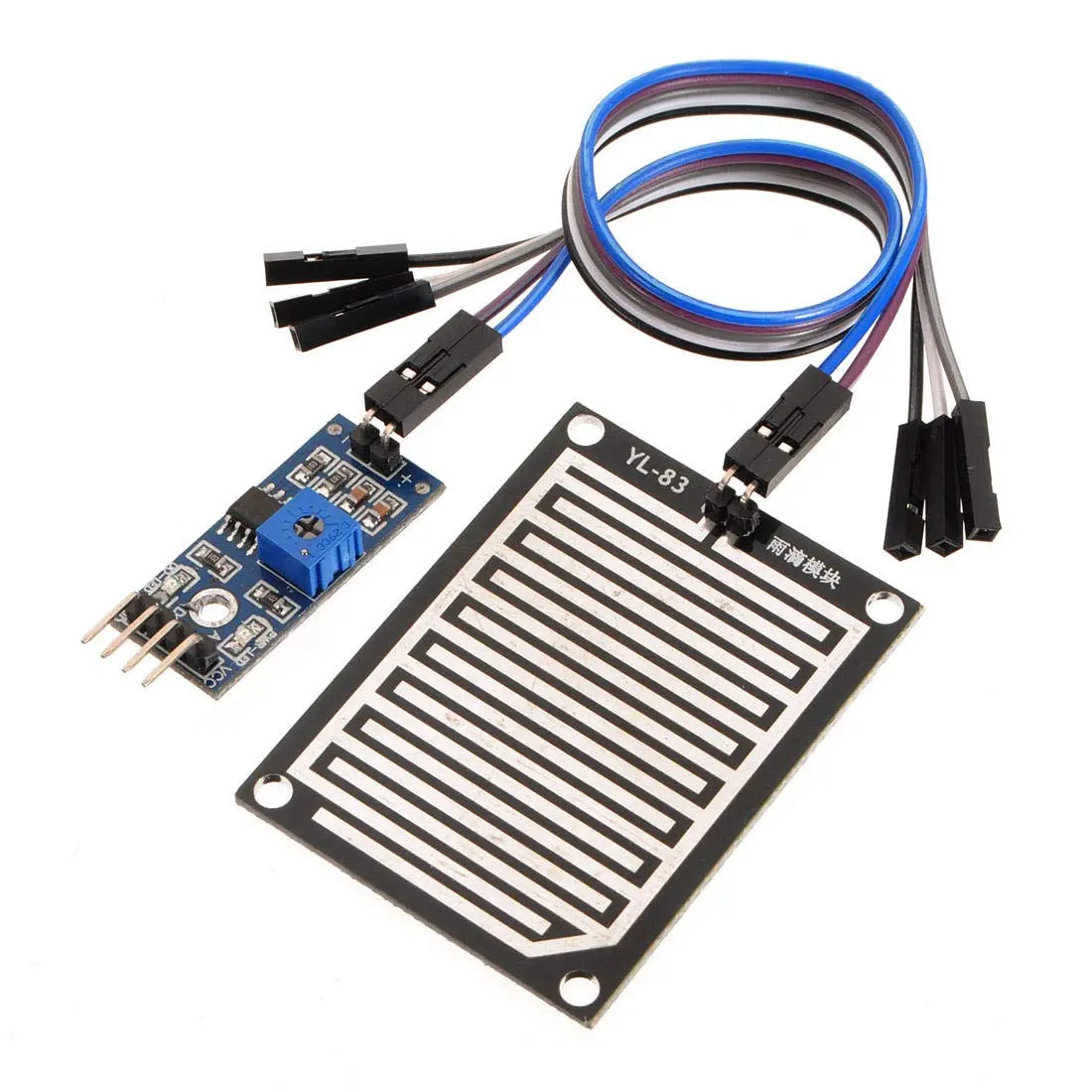

Rain Drops Detection Sensor Module

The Rain Drops Detection Sensor Module is a highly sensitive weather detection sensor designed to identify rainfall and water droplets. It works by measuring changes in resistance across a conductive sensing plate when water is present. This module is widely used in smart irrigation systems, weather monitoring stations, automatic windshield systems, and IoT-based environmental projects.

Features

• Detects rain, water droplets, and moisture presence
• High sensitivity sensing plate for accurate detection
• Adjustable sensitivity via onboard potentiometer (on interface module)
• Dual output support: analog (A0) and digital (D0)
• Easy integration with Arduino, ESP8266, ESP32, Raspberry Pi
• Compact and lightweight design
• LED indicator for rain detection status
• Suitable for outdoor weather monitoring applications

Specifications

• Model: Rain Drops Detection Sensor Module
• Operating Voltage: 3.3V – 5V DC
• Output Type: Analog (A0) and Digital (D0)
• Sensor Type: Resistive conductive rain sensing plate
• Detection Principle: Change in resistance due to water presence
• Comparator IC: LM393 (on module board)
• Sensitivity Adjustment: Yes (via potentiometer)
• PCB Size: Approx. 30mm × 16mm (control board)
• Operating Temperature: 0°C to 50°C (recommended)
• Compatibility: Arduino, ESP8266, ESP32, Raspberry Pi
