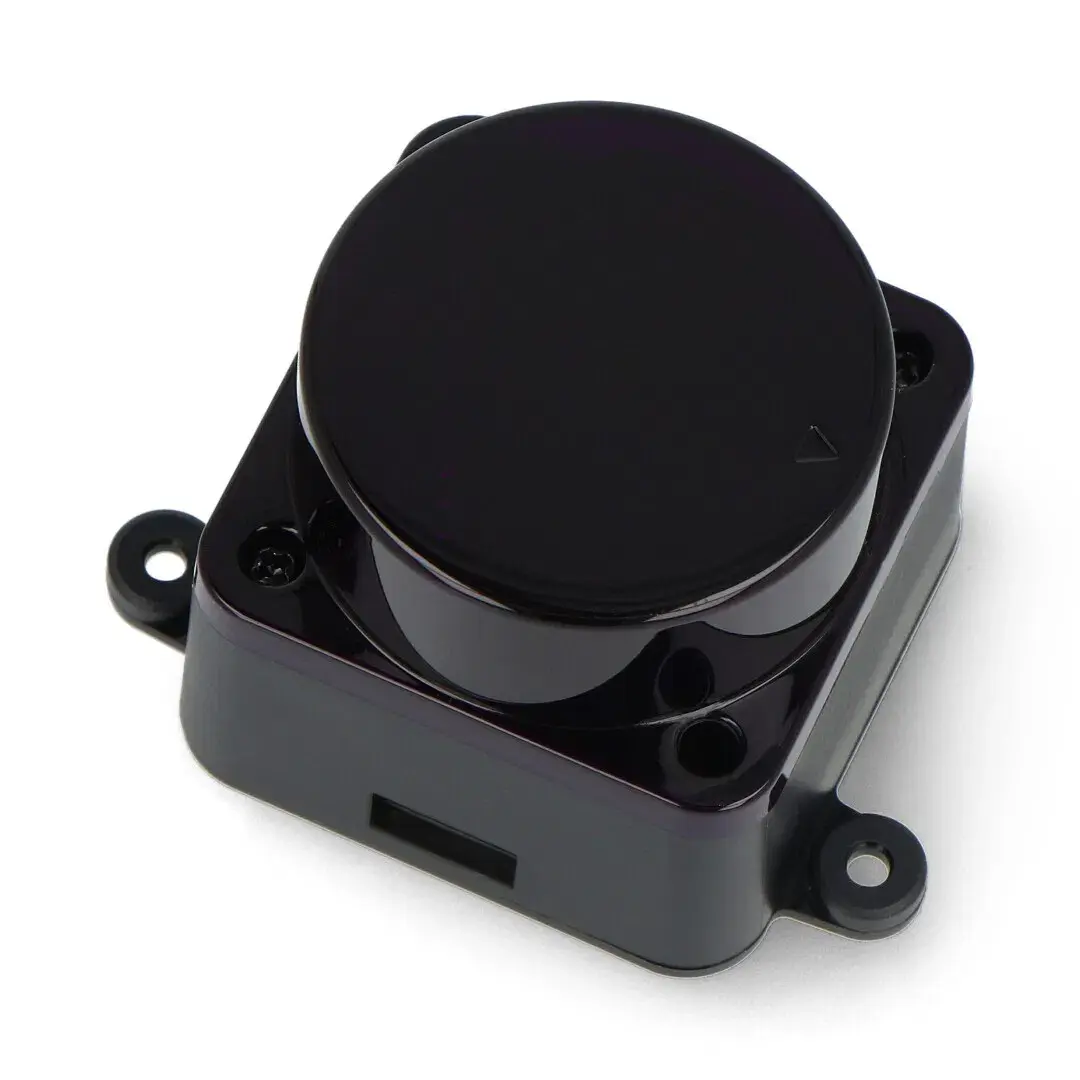

D500 LiDAR 360° Laser Scanning Sensor for Robotics & Mapping

The D500 LiDAR is a high-precision laser distance sensor designed for real-time 360° scanning and environment mapping. Using advanced DTOF (Direct Time-of-Flight) technology, it provides accurate distance measurements and is widely used in robotics, SLAM navigation, obstacle detection, and autonomous systems. It is ideal for developers working with ROS, Raspberry Pi, and advanced robotics platforms.

Features:

• 360° Full Scanning: Real-time circular environment detection
• High Accuracy: Precise distance measurement for reliable mapping
• Long Range Detection: Measures distances up to approximately 12 meters
• DTOF Technology: Fast and accurate laser-based sensing
• High Sampling Rate: Up to ~5000 samples per second
• Strong Anti-Interference: Works in bright environments
• UART Communication: Easy interface with microcontrollers and SBCs
• ROS Compatibility: Supports ROS1 and ROS2 for advanced robotics
• Compact Design: Easy integration into robots and automation systems

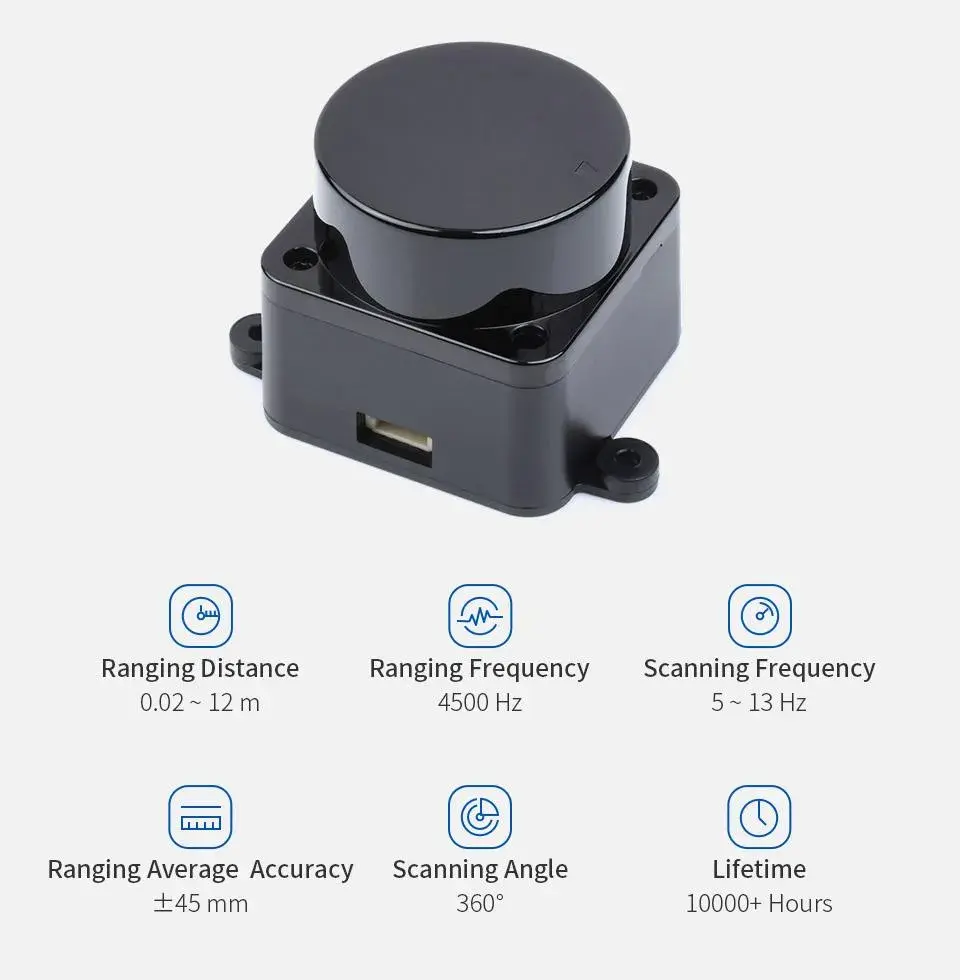

Specifications:

• Measurement Range: 0.03m – 12m
• Accuracy: ±10mm (short range), ±20–30mm (long range)
• Scanning Angle: 360°
• Scan Frequency: 6–13Hz (typical ~10Hz)
• Data Rate: Up to ~5000 samples/sec
• Communication Interface: UART (Serial)
• Technology: DTOF (Direct Time-of-Flight)
• Laser Safety: Class 1 (safe for general use)
• Operating Voltage: Typically 5V
• Dimensions: Compact cylindrical module
