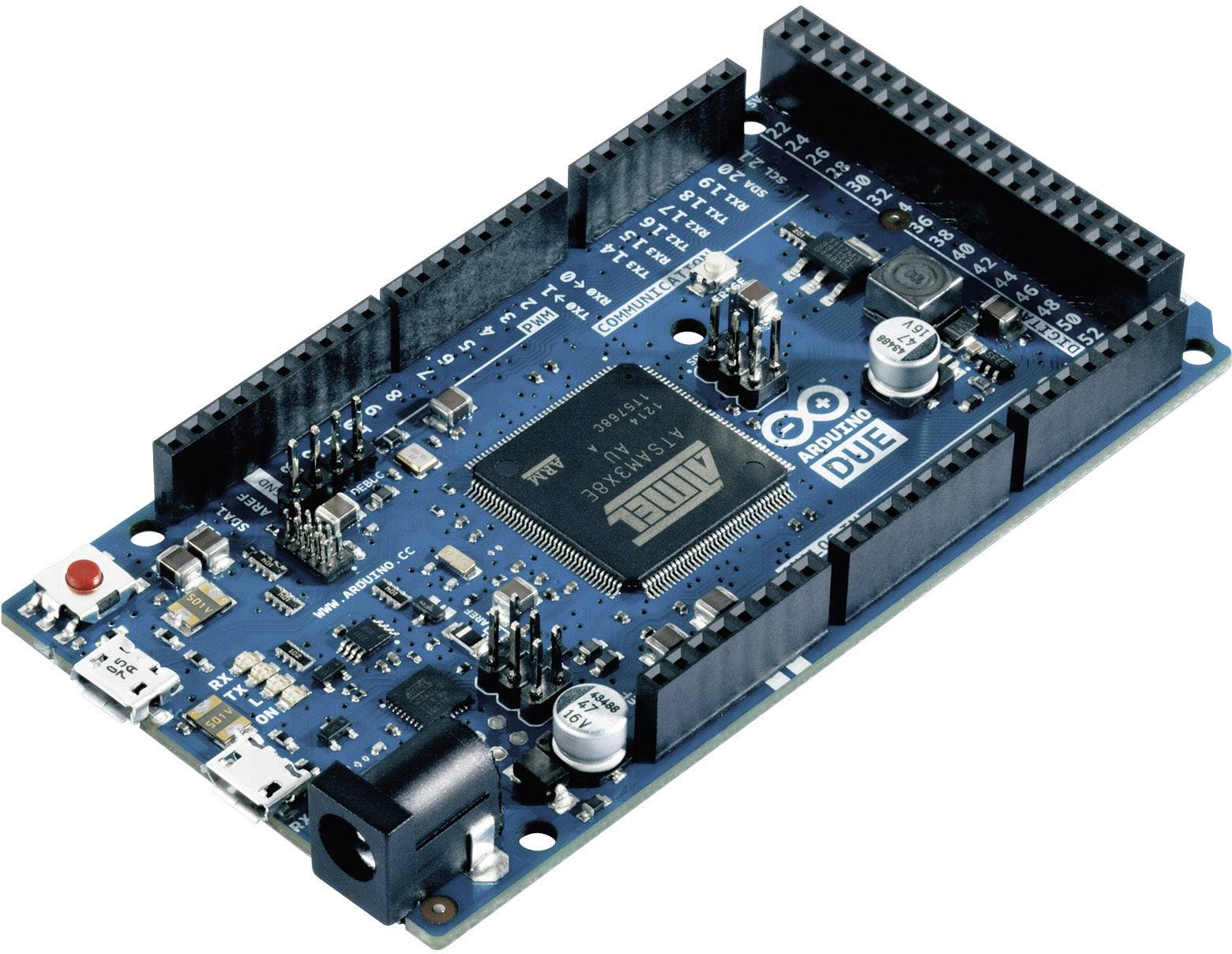

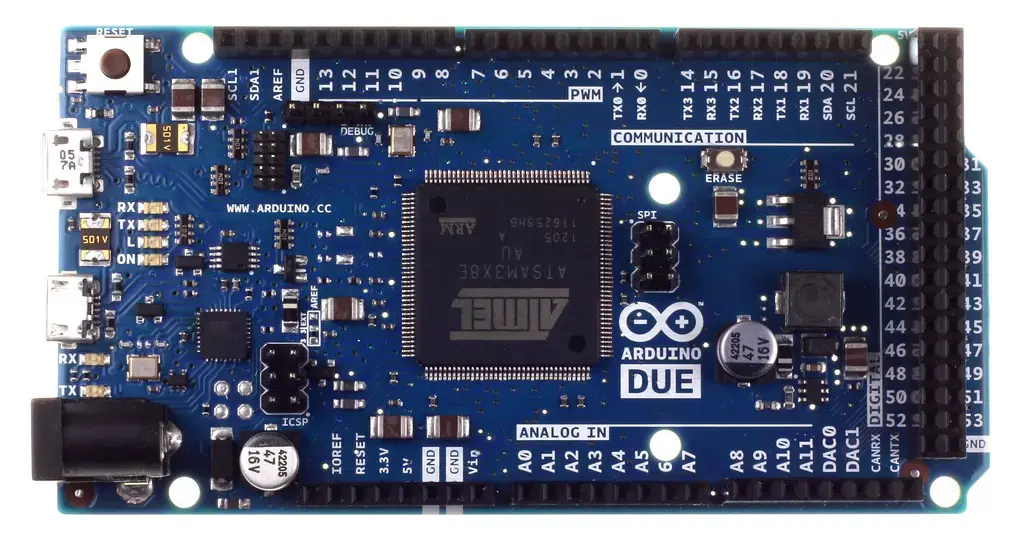

Arduino DUE

The Arduino DUE is a powerful 32-bit microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 processor. Designed for advanced projects, it provides higher processing power, more memory, and additional I/O pins compared to standard Arduino boards. Ideal for robotics, IoT, automation, and complex electronics projects, the Arduino DUE delivers reliable performance for professional and hobbyist makers.

Features:

• Microcontroller: Atmel SAM3X8E ARM Cortex-M3 for high-speed computing
• Operating Voltage: 3.3V
• Digital I/O Pins: 54 (12 PWM outputs) for advanced project control
• Analog Input Pins: 12 for sensors and measurement
• Analog Output Pins: 2 DAC outputs
• Flash Memory: 512 KB for program storage
• SRAM: 96 KB for fast data handling
• Clock Speed: 84 MHz for high-performance execution
• USB Connectivity: Programming via USB port
• Power Supply: USB or external 7-12V for flexible operation

Specifications:

• Microcontroller: Atmel SAM3X8E ARM Cortex-M3
• Operating Voltage: 3.3V
• Input Voltage (Recommended): 7-12V
• Digital I/O Pins: 54 (12 PWM)
• Analog Input Pins: 12
• Analog Output Pins: 2 (DAC)
• Flash Memory: 512 KB
• SRAM: 96 KB
• Clock Speed: 84 MHz
• USB Interface: USB-B
• Dimensions: 101.52mm x 53.3mm
