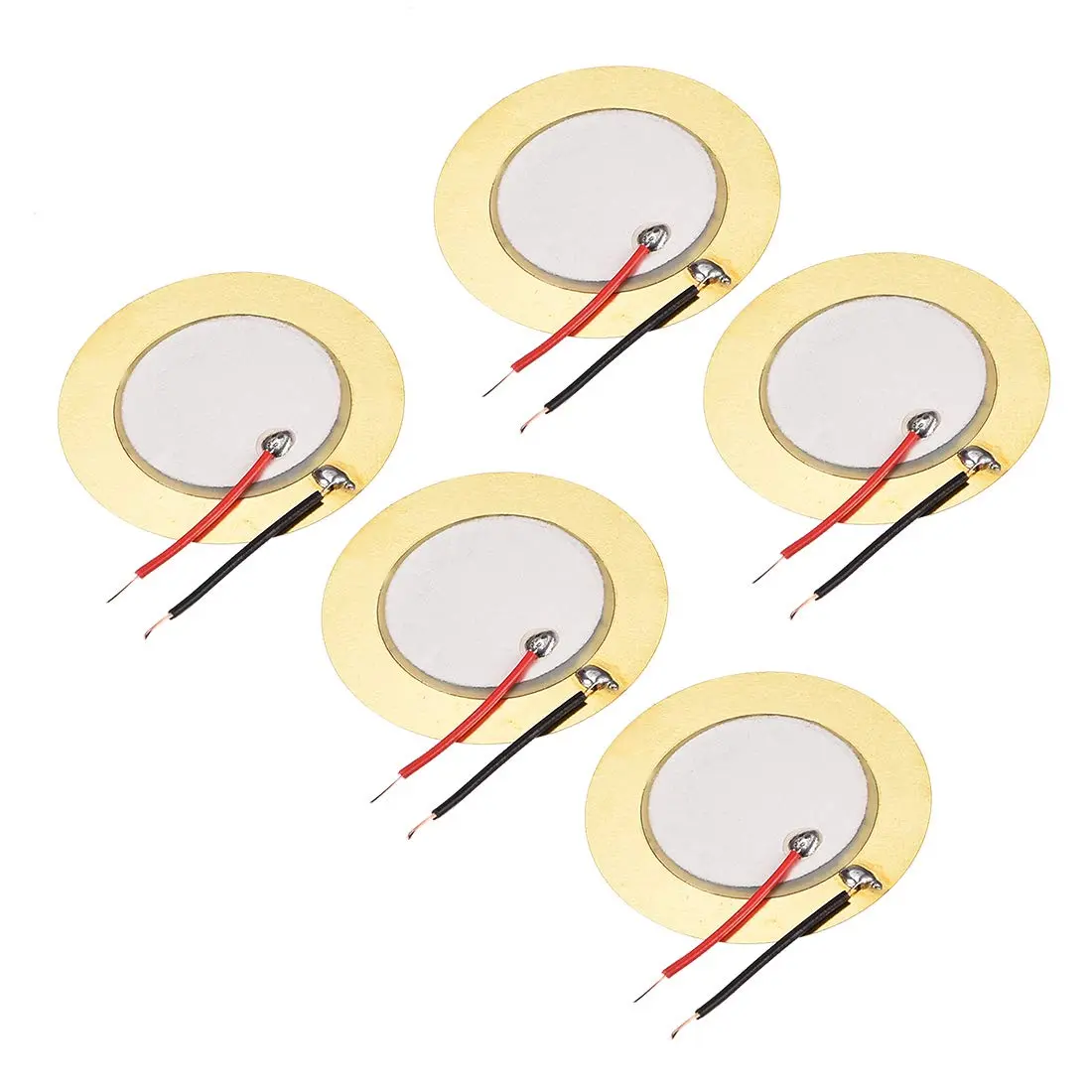

35mm Piezoelectric Ceramic Brass Disc (XHXDZ-35MM) – Piezo Buzzer & Vibration Sensor
The 35mm Piezoelectric Ceramic Brass Disc (XHXDZ-35MM) is a compact transducer element used for sound generation, vibration sensing, and pressure detection. It combines a brass base plate with a bonded piezoelectric ceramic layer that converts electrical energy into mechanical vibration and mechanical force into electrical signals. It is ideal for buzzers, alarms, knock sensors, contact microphones, and Arduino projects.
Features:
- Dual Function: Works as both sound generator and vibration sensor
- 35mm Standard Size: Common size for buzzers and DIY electronics
- Piezoelectric Effect: Converts voltage to vibration and pressure to voltage
- Brass Backing Plate: Improved durability and resonance
- Low Power Consumption: Efficient for battery-powered projects
- Lightweight Design: Easy to mount in enclosures or circuits
- Fast Response: Suitable for sensing impacts and vibrations
- Wide Compatibility: Works with Arduino, ESP32, Raspberry Pi, and more
- Easy Integration: Can be glued, mounted, or soldered into projects
Specifications:
- Model: XHXDZ-35MM
- Type: Piezoelectric Ceramic Brass Disc
- Diameter: 35mm
- Thickness: Approx. 0.5mm – 0.6mm
- Material: Brass + Piezoelectric Ceramic
- Typical Resonant Frequency: Around 3kHz (varies by model)
- Capacitance: Approx. 25nF (varies by model)
- Operating Mode: Sensor / Buzzer / Transducer
- Weight: Lightweight disc element
- Mounting: Adhesive, housing, or bracket installation
