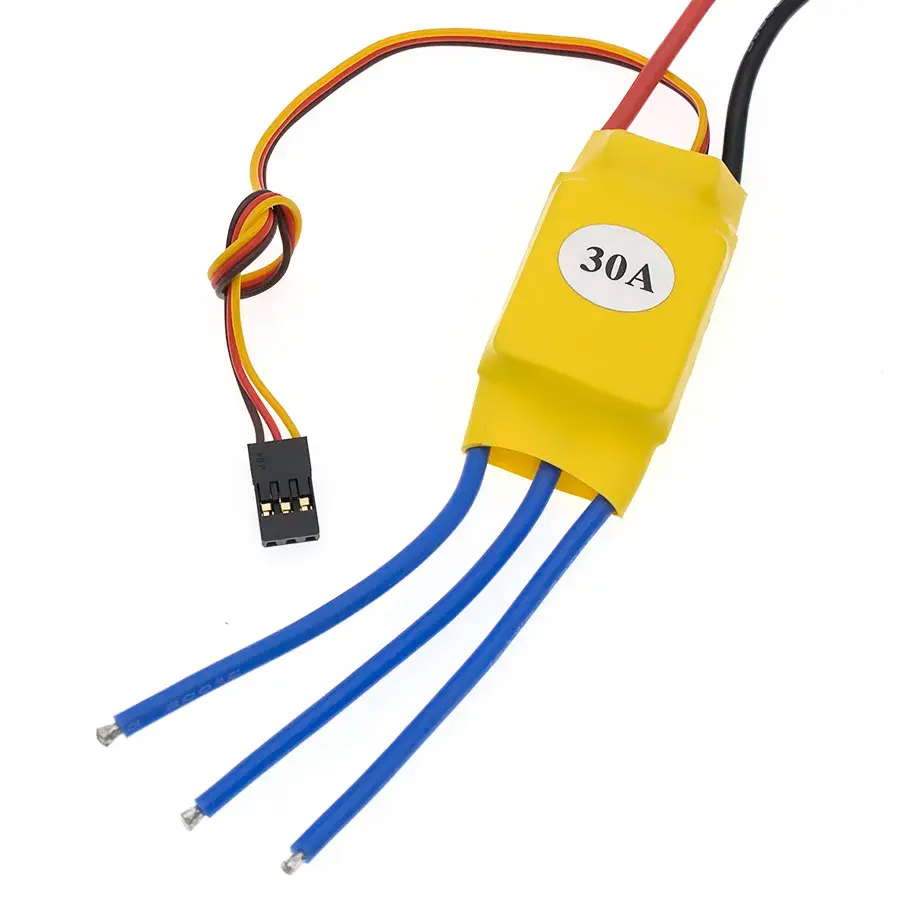

30A Electronic Speed Controller (ESC)

The 30A Electronic Speed Controller (ESC) is a high-performance module designed to control the speed, direction, and braking of brushless DC (BLDC) motors. It is commonly used in drones, RC planes, cars, and robotics projects. With smooth throttle response and built-in protection features, this ESC ensures stable and efficient motor operation.

Features:

• 30A Continuous Current: Supports motors drawing up to 30A current
• Burst Current Support: Up to ~40A for short durations
• Smooth Throttle Control: Precise and responsive speed regulation
• Built-in BEC: Provides regulated 5V output to power controllers and receivers
• Wide Compatibility: Works with brushless motors used in drones, RC planes, and cars
• Multiple Protections: Overcurrent, overheat, low voltage cutoff, and signal loss protection
• Compact and Lightweight: Ideal for space-constrained applications
• Easy Interface: Standard 3-wire servo connector for control signal
• Firmware Support: Compatible with SimonK / BLHeli (varies by model)

Specifications:

• Type: Brushless DC Motor ESC (Sensorless)
• Continuous Current: 30A
• Burst Current: Up to 40A (short duration)
• Input Voltage: 2S–4S LiPo (7.4V – 16.8V)
• BEC Output: 5V / 2A (typical)
• PWM Signal: 1ms – 2ms standard servo signal
• PWM Frequency: ~8kHz – 20kHz (model dependent)
• Motor Compatibility: Brushless DC motors (e.g., A2212 series)
• Dimensions: Approx. 45 × 24 × 10 mm
• Weight: ~20–30g
