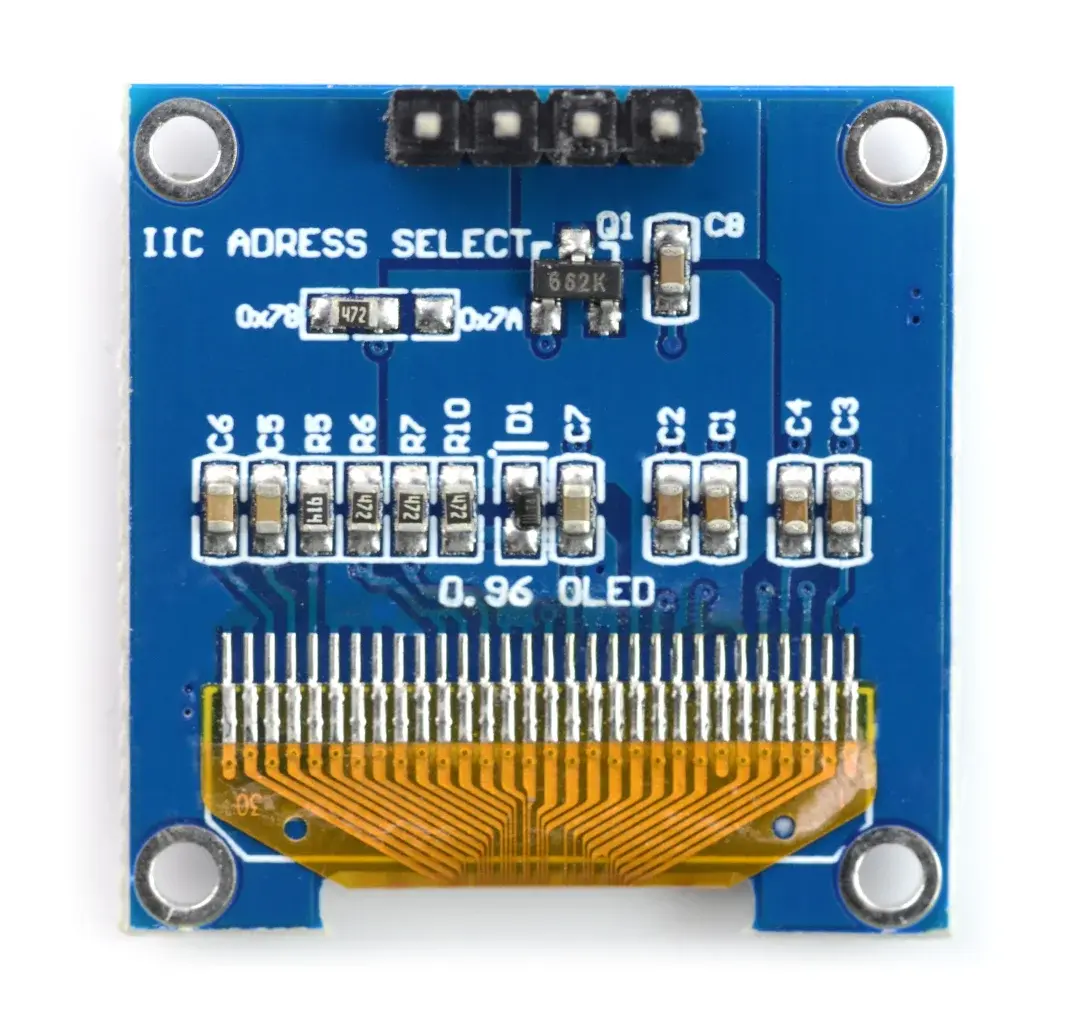

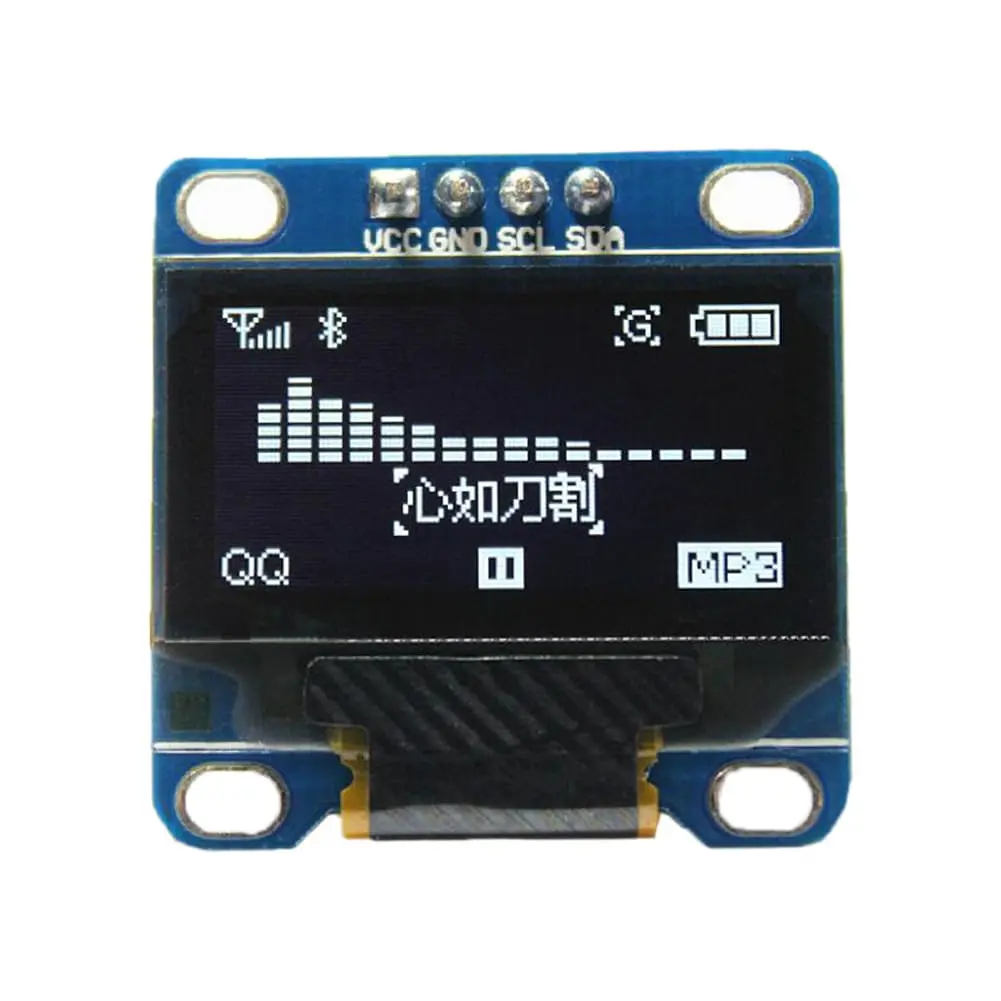

0.96 Inch 128×64 I2C OLED Display

The 0.96 Inch 128×64 I2C OLED Display is a compact, high-contrast graphical display module commonly used in embedded systems and DIY electronics projects. Based on the SSD1306 controller, it communicates via the I2C interface, requiring only two communication pins (SDA and SCL), making it easy to integrate with Arduino, ESP32, ESP8266, Raspberry Pi, and other microcontrollers. It is ideal for displaying text, graphics, sensor data, and UI elements.

Features:

• High Contrast Display: OLED technology provides sharp and clear visuals without backlight
• I2C Interface: Uses only 2 communication lines (SDA and SCL)
• Graphic Display: Supports both text and graphical output
• Wide Compatibility: Works with Arduino, ESP boards, Raspberry Pi, and more
• Low Power Consumption: Efficient OLED technology suitable for battery-powered projects
• Compact Size: Small form factor ideal for embedded applications
• SSD1306 Controller: Widely supported by libraries and frameworks
• No Backlight Required: Self-emissive pixels for better visibility

Specifications:

• Display Size: 0.96 inch
• Resolution: 128 × 64 pixels
• Display Type: OLED (Organic Light Emitting Diode)
• Controller: SSD1306
• Interface: I2C (SDA, SCL)
• Operating Voltage: 3.3V – 5V DC (depending on module design)
• Viewing Angle: Wide (near 180°)
• Color: Typically white, blue, or yellow (depends on variant)
• Power Consumption: Low (varies with pixel usage)
• Address: Common I2C addresses 0x3C or 0x3D (configurable)
• Dimensions: Compact PCB module size
